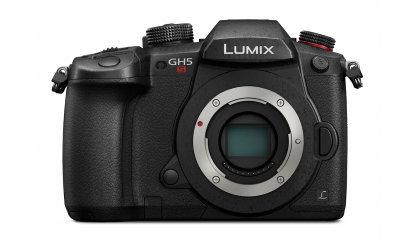

PANASONIC LUMIX GH5S Hus

Cinema 4K, V-LogL and Time Code
The heart of the Lumix GH5S is its 10.2 megapixel Multi Aspect image sensor, which offers the ability to shoot with different aspect ratios, such as 4: 3, 17: 9, 16: 0, and 3: 2, but the same angle of view. The GH5S is also the first camera that can record in Cinema 4K, C4K (4096x2160 pixels) at frame rates up to 60p. And there is no time limit for your recordings, either in C4K or Full HD. Furthermore, if you want to shoot at really high speeds for slow motion scenes, you can use the variable frame rate feature and reach up to 240 fps with Full HD.

Video is recorded with 4:2:2 color subsampling and the signal can either be output at 10-bit color depth to an external storage device (via HDMI), or saved at 8 bit on a memory card. Built-in profiles with wide dynamic range, Hybrid Log Gamma (HLG) and V-LogL, provide the ability to get exactly the tone and contrast desired in the finished material.

Microphone input and headphone jack are obvious features on a pro level camera, but the Lumix GH5S also supports Time Code, both in and out. A feature that significantly simplifies audio and video synchronization when recording a scene with multiple cameras.


Extreme sensitivity
Thanks to the high-sensitivity image sensor, a new technology with two noise reduction circuits for each pixel (Dual Native ISO) and the powerful Venus Engine image processor, the Panasonic Lumix GH5S offers a huge range of sensitivities, from ISO 160 all the way up to ISO 51 200. A special setting for extended sensitivities make it even possible to reach ISO 204 800!

The advanced technology assures low noise levels even in really dark scenes and provides a great freedom to shoot in existing light.


Fast and precise in all situations
The Depth from Defocus (DFD) technology provides fast and precise focusing for both video and photography. But equally important is the GH5S’s capability to focus in as low light as -5 EV. That’s so dark that the eyes can hardly discern any details. And if you want to capture action scenes, you can set shutter speeds up to 1/16 000 (with the electronic shutter) and shoot at 8 frames per second with continuous autofocus (AF-C). Using the 4K Photo mode, you can reach extreme speeds – up to 60 frames per second at a resolution of 8 megapixels.


Built for field conditions
In addition to the 3.2-inch touch screen, the Panasonic Lumix GH5S also features a high-resolution electronic viewfinder with OLED technology that allows for an enhanced image in low light (Live Boost). An ergonomic grip makes the camera comfortable and safe to hold even heavier lenses, microphones and other accessories mounted. Large controls and both front and rear input dials make it easy to change settings. A well-positioned joystick can be used to manually select an auto focus point.

The Lumix GH5S is built for tough use and its weatherproof magnesium alloy chassis can withstand cold (guaranteed down to -10 degrees), water splash and dirt. This is truly a camera for field conditions, with dual SD card slots (both supporting UHS-II / V90 speed class), USB battery charging and an optional battery grip (DMW-BGGH5).

Important Features

• High sensitivity 10.2 megapixel Multi Aspect image sensor
• Sensitivities up to ISO 51 200 (204 800 in extended mode)
• Video recording in Cinema 4K, up to 60p/50p at 150 Mbs
• 4:2:2 color sampling with 10 bit color depth
• Built-in Hybrid Log Gamma (HLG) and V-LogL profiles
• Time Code In/Ut
• External microphone input and head phone jack
• Electronic viewfinder with OLED-technology, 3 680K dots, 0,76x magnification
• Fully articulating 3.2" touch screen
• Built-in WiFi and Bluetooth for wireless transmission of photos
• Fast and sensitive autofocus down to -5 EV
• 4K Photo: Continuous drive with up to 60 fps at 8 megapixel
• Electronic shutter with 1/16 000 sec
• Splash, dust and freeze proof metal chassis
• Dual SD card slots, both UHS II / V90 compatible
• Battery grip DMW-BGGH5 available as accessory

Specifications

Image sensor: High sensitivity Multi Aspect MOS sensor. 17.3 x 13.0 mm in 4:3 format
Resolution: 10.2 megapixel
Lens mount: Micro Four Thirds. 2x focal length multiplier (full frame equivalent)
Viewfinder: Electronic viewfinder with OLED-technology. 3 680K dot resolution. Display speed 120 b/s. 1,52x magnification (0,76x full frame equivalent)
Screen: 3.2" articulated touch screen with 1 620K dot resolution
Sensitivity: ISO 160 – 51 200 in 1/3 steps. Extended range down to ISO 80, up to ISO 204 800
White balance: Auto, five preset modes, manual, Kelvin degrees
Focus: Contrast detecting autofocus with 225 AF-points and DFD technology. Also Face Detection and manual AF-point selection. Can focus in low light down to -5 EV
Metering modes: Multi, centerweighted, spot
Exposure: Program, shutter- and aperture priority plus manual exposure. Exposure compensation +/- 5 stops in 1/3 stops. Bracketing +/- 3 stops
Shutter: Mechanical shutter with 1/8000 – 60 s. Electronic shutter 1/16 000 – 1 s. Bulb up to 30 min. 1/250 s flash sync
Continuous drive: 12 fps (AF-S), 8 fps (AF-C). Up to 600 images in jpeg and 80 in raw. 4K Photo (8 megapixel): 60 or 30 fps
Video: C4K (4096x2160 pixlar) and 4K (3840 x 2160 pixlar) up to 60p/50p, 150 Mbps or 30p/24p at 400 Mbps. Unlimited recording until full memory card. Full HD (1920×1080 pixlar) 60p/50p at 200 Mbps plus possibility to set 240 fps. Format: MOV, MP4, AVCH (only Full HD). Hybrid Log Gamma and V-LogL profiles. Built-in stereo microphone.  Time Code In/Out
Flash: Accessory shoe for external flash. No built-in flash
Storage: Dual card slots for SD/SDHC/SDXC. Compatible with UHS-II / V90 speed class.
Battery: Lithium ion battery DMW-BLF19. Battery grip DMW-BGGH5 available as accessory
Connections: WiFi and Bluetooth for wireless transfer. External microphone port. Headphone port. HDMI. USB 3.1 port
Other: Weather protected metal housing (magnesium alloy). Multiexposure. Interval Timer shooting. Video with variable frame rate
Dimensions: 139 x 98 x 87 mm
Weight: 660 grams including battery and SD-card
